Summarize

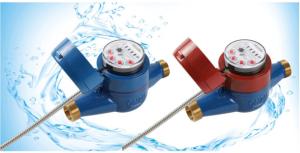

This water meter uses photoelectric direct reading technology to read the odometer data, which can reduce the reading error to zero compared with the traditional pulse water meter. Photoelectric direct reading water meter can be used with intelligent meter reading system equipment to help the intelligent meter reading work of water affairs, water conservancy, water conservancy and hydropower departments.
Product features
1. Zero reading error.
2. Low power consumption and low failure rate
3. Highly reliable data encoding and verification technology
3. Rotor-type metering structure, with high metering accuracy, convenient meter reading and beautiful appearance;
4. Comply with the "Electronic Remote Water Meter" standard (CJ/T 224-2012)
5. Flow performance complies with GB/T 778.1~5-2018 standards, and the accuracy level is Class 2
6. Compatible with multiple communication protocols: DL/T645, CJ/T188, internal protocol, user-specified protocol
7. Comply with the electromagnetic compatibility design requirements of electronic products such as EMC, ESD, EMI, etc.
8. Cooperate with the remote automatic meter reading management system to realize meter reading and monitoring automation
Technical Parameters
| Product model: | LXSY-15 ~ 40E |
| Working voltage: | M-BUS: DC 36V | RS-485: DC 12V |
| Working current: | M-BUS: | Meter Reading Current≤10.0mA |
| Static operating current≤1.5 mA |
| RS-485: | Meter Reading Current≤5.0mA |
| Static working current≤1.0mA |
| Ambient temperature: | 0.1 ℃ ~ + 55 ℃ |
| Relative humidity: | 0 ~ 95% RH |
| Temperature rating: | T30 (cold water) | T90 (hot water ) |
| Working pressure: | 1 MPa |
| Pressure loss grade: | ∆p63 |
| Communication with host: | M-bus, RS-485 bus |
| Communication rate: | 1200/2400/4800/9600bps |
| Communication protocols: | DL/T645, CJ/T 188,internal protocols, or user customization |
| Max communication distance: | 300m |
| Short-circuit current protection: | Yes |
| Bus PIN ESD protection: | over 10 kV |
| Storage temperature: | -25 ℃ ~ + 65 ℃ |
| Bus open circuit, short circuit, idle and other fault protection | Yes |
| Accuracy rating: | Class 2 |
Flow Parameter
| Model | Nominal
diameter | Q3/Q1 | Overload
flow Q4 | Normal
flow Q3 | Boundary
flow Q2 | Minimum
flow Q1 |
| LXSY-15E | DN15 | 160 | 3.125 | 2.500 | 0.050 | 0.025 |
| LXSY-20E | DN20 | 160 | 5.000 | 4.000 | 0.080 | 0.040 |
| LXSY-25E | DN25 | 160 | 7.875 | 6.300 | 0.128 | 0.063 |
| LXSY-32E | DN32 | 160 | 12.500 | 10.000 | 0.200 | 0.125 |
| LXSY-40E | DN40 | 100 | 20.000 | 16.000 | 0.320 | 0.200 |
NOTE
Maximum allowable error:
1. The maximum allowable error of high zone flow rate (Q2≤Q≤Q 4) is ± 2% when the water temperature range is 0.1 ℃ ~ 30 ℃. When the water temperature is higher than 30 ℃, the maximum allowable error of ± 3%
2. The low zone flow rate (Q1≤Q ≤Q2) is ± 5% , regardless of the water temperature range.
